AFP FIBRE FIX INDUSTRIAL PIPE REPAIR KIT

Mining

Pipe repair system

Ideal for repairs to water, chemical and slurry pipelines, ventilation ducting, etc. Both underground and on the surface, such as coal wash plants, processing areas and mineral handling, dewatering etc.

Industrial

Pipe repair bandage south africa

Can be used to repair process pipes carrying oils, solvent, water, gas, steam and a wide variety of liquids; such as in factories, power stations and sugar mills, as well as in petroleum production, paper and general manufacturing.

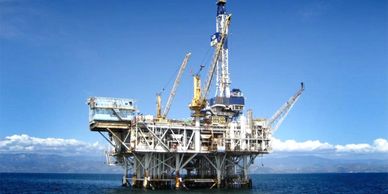

Marine


A quick repair for leaking pipes on all types of marine-crafts, including fishing, merchant and naval vessels, as well as offshore installations.

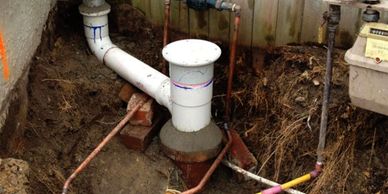

Plumbing

Pipe fix south africa

 A quick repair for leaking pipes on all types of marine-crafts, including fishing, merchant and naval vessels, as well as offshore installations.

Domestic

Pipe repair bandage wrap south africa

Leaking toilets, drain pipes, pool hoses and water pipes, as well as fixing hammers, picks and axes are but a few household applications.

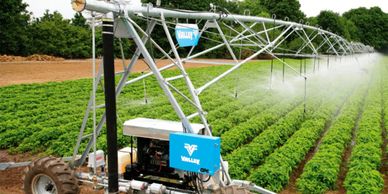

Agriculture

Pipe repair africa



A quick and effective solution in both the commercial and general farming industry.


INDUSTRIAL PIPE REPAIR KIT

AFP FIBRE FIX INDUSTRIAL PIPE REPAIR KIT is used in all industries where leakage occurs; including water pipelines, sludge & slurry pipelines, gas pipelines, oil pipelines, chemical pipelines, domestic pipes, drain pipes, etc.

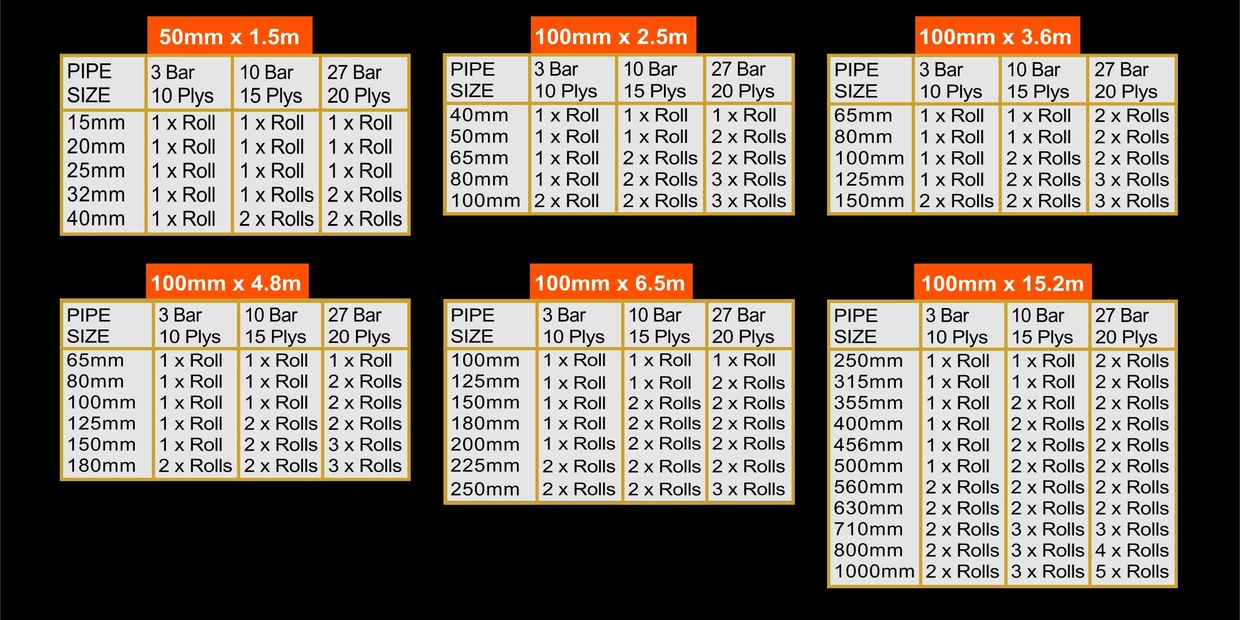

BANDAGE SIZE AND PSI RATINGS

The bandage size required will be determined by the diameter of the pipe that will need to be repaired and the number of bandage plys to be applied to the damaged pipe will be calculated by the amount of pressure (PSI) that the pipe will contain as indicated on the chart.

INSTRUCTIONS

APPLICATION INSTRUCTIONS

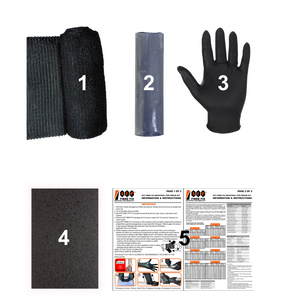

AFP FIBRE FIX INDUSTRIAL PIPE REPAIR KIT

1.  Shut down damaged section and relieve all pressure. Abrade area and remove oil,

    grease and loose rust.

2. Put on the latex gloves provided.

3. Mix AFP STEEL PUTTY provided and press firmly into the crack, hole or void

    where/if required.

4. Remove AFP FIBRE FIX bandage and immerse in water for 5-10 seconds. Squeeze

    out excess water.

5. Apply AFP FIBRE FIX bandage to the pipe (or other repair) by firmly and tightly

    wrapping the bandage to at least 50mm past the damaged area on each side with

    5-20 layers. Refer to page 2 for number of plies required, “Bandage Size Required:

    Pipe Diameter & PSI Rating”. Application time is ±2 minutes.

6. Whilst wrapping, pressure must be applied to ensure that no air is trapped

     between the layers. Use hands to mould and squeeze the bandage, smoothing the

     area while the curing process is starting to take effect. Initially mould in the

     direction of the applied wrap. As the infused resin starts to cure bubbling will

     occur, continue to mould and rework the resin back into the bandage in a back

     and forth motion, applying pressure. Moulding needs to continue until the

     bandage is hard and no reaction is visible.

     - The entire bandage must be used.

     - When sticky, water and/or oil can be applied for extra moulding.

     - Bandage will get slightly hot while resin is activated
